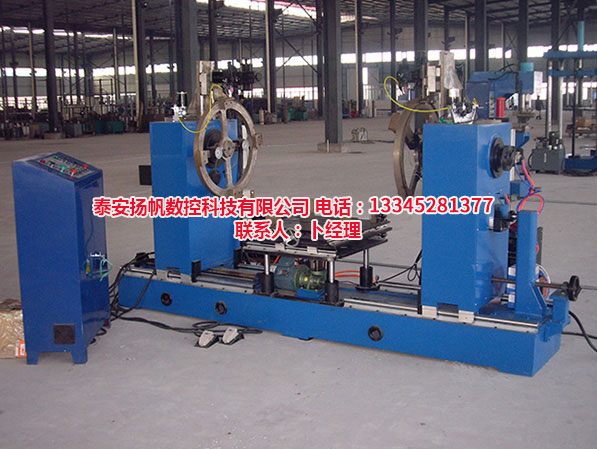

大家在選擇焊接變位機的時候，除了要注意對設備的選擇，還要注意對其夾具的選擇，這樣在使用中才能充分發揮它的作用。那么，大家知道該怎么選擇更好的設備嗎?下面山東自動焊接設備廠家就為您介紹下具體的內容，以供大家參考。

When you select the welding positioner, you should pay attention to the selection of both the equipment and the fixture, so that it can fully play its role in use. So, do you know how to choose a better device? Next, Shandong automatic welding equipment manufacturer will introduce the specific contents for your reference.

(1)夾具的通用性

(1) Universality of fixture

如果不能兼顧夾具的機型，改變工件型號時須更換夾具。更換夾具不僅會延遲作業時間，降低生產效率，而且時間過長會降低夾具的精度，影響焊接質量。如推土機后橋箱機器人焊接，要實現大小機型的通用裝夾，結構簡單、新穎的夾具是關鍵。

If the model of the fixture cannot be considered, the fixture must be replaced when changing the model of the workpiece. Replacing the fixture will not only delay the operation time and reduce the production efficiency, but also reduce the accuracy of the fixture and affect the welding quality if the time is too long. For example, the robot welding of the rear axle box of the bulldozer requires a simple and novel fixture to achieve universal clamping of large and small models.

(2)夾具的定位精度要準確

(2) Fixture positioning accuracy shall be accurate

焊接機器人對工件的一致性和位置精度對夾具的要求較高，它要求機器人夾具在設計時準確定位，夾具定位越準確，工件的一致性越好，將減少機器人找到提高生產效率的時間。

The welding robot has high requirements for the consistency and position accuracy of the workpiece. It requires the accurate positioning of the robot fixture during the design. The more accurate the fixture positioning is, the better the consistency of the workpiece will be, which will reduce the time for the robot to find and improve the production efficiency.

(3)在夾具的設計上要盡量少遮擋焊縫

(3) In the design of fixture, the welding seam shall be shielded as little as possible

工件的安裝表面盡可能在無焊縫的表面上選擇，使用殼體的固定法蘭表面實現準確定位，操作方便，不堵塞焊縫。

The installation surface of the workpiece shall be selected on the surface without weld as much as possible. The fixed flange surface of the shell shall be used to achieve accurate positioning, which is convenient for operation and does not block the weld.

柔性化的要求是體現在焊接變位機上，與機器人成套的位移機器人的形式應符合推山工件的要求，夾緊快、方便，盡可能縮短夾緊時間。

The requirement of flexibility is reflected in the welding positioner. The form of displacement robot in complete set with the robot should meet the requirements of the rolling workpiece, and the clamping should be fast and convenient, and the clamping time should be shortened as much as possible.

(5)無論采取什么形式，都要注意

(5) No matter what form it takes, pay attention to safety

要保證操作者的人身健康。機器人的關節伺服軸要能和外部軸實現聯動功能，從而實現弧形焊縫的焊接。

The personal health of operators shall be guaranteed. The joint servo axis of the robot should be able to realize the linkage function with the external axis, so as to realize the arc welding.

在夾具設計上，應遵從以上的原則，這樣大家就會更好的使用該設備進行工作，更多相關內容的了解就來我們網站http://www.ykwanda.com進行咨詢吧！

In fixture design, we should follow the above principles, so that we can better use the equipment for work. For more information, please visit our website http://www.ykwanda.com Consult!
